LED street lights

LED street lights, 30–400 W

Seven housings in the LSD series for residential streets, main roads and solar systems.

LED street light heads

LSD series, 30–400 W

LED street lights for mains-powered roads, or as the light source in our solar systems. Common data for the LSD-C01, C03–C07 range is below. Light distribution curves and dimension drawings are available on request.

Illustration

LED street light

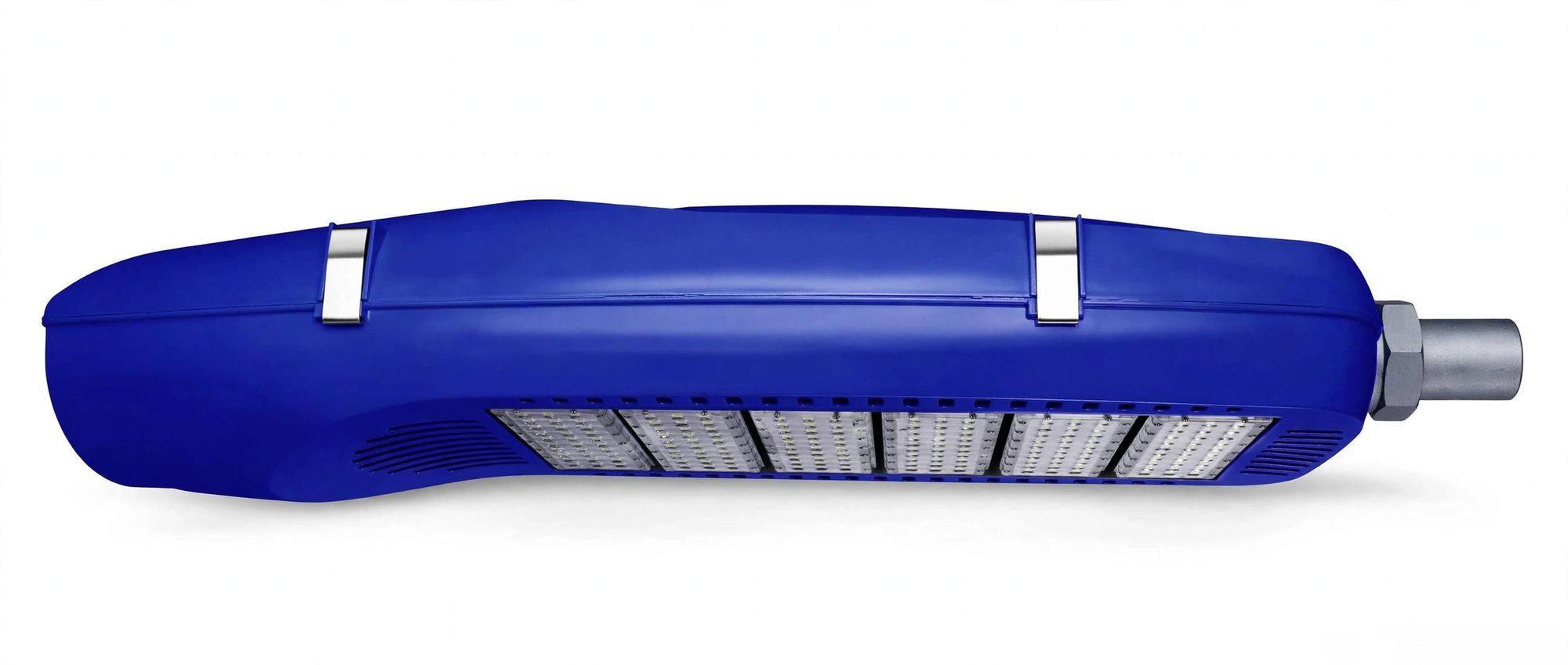

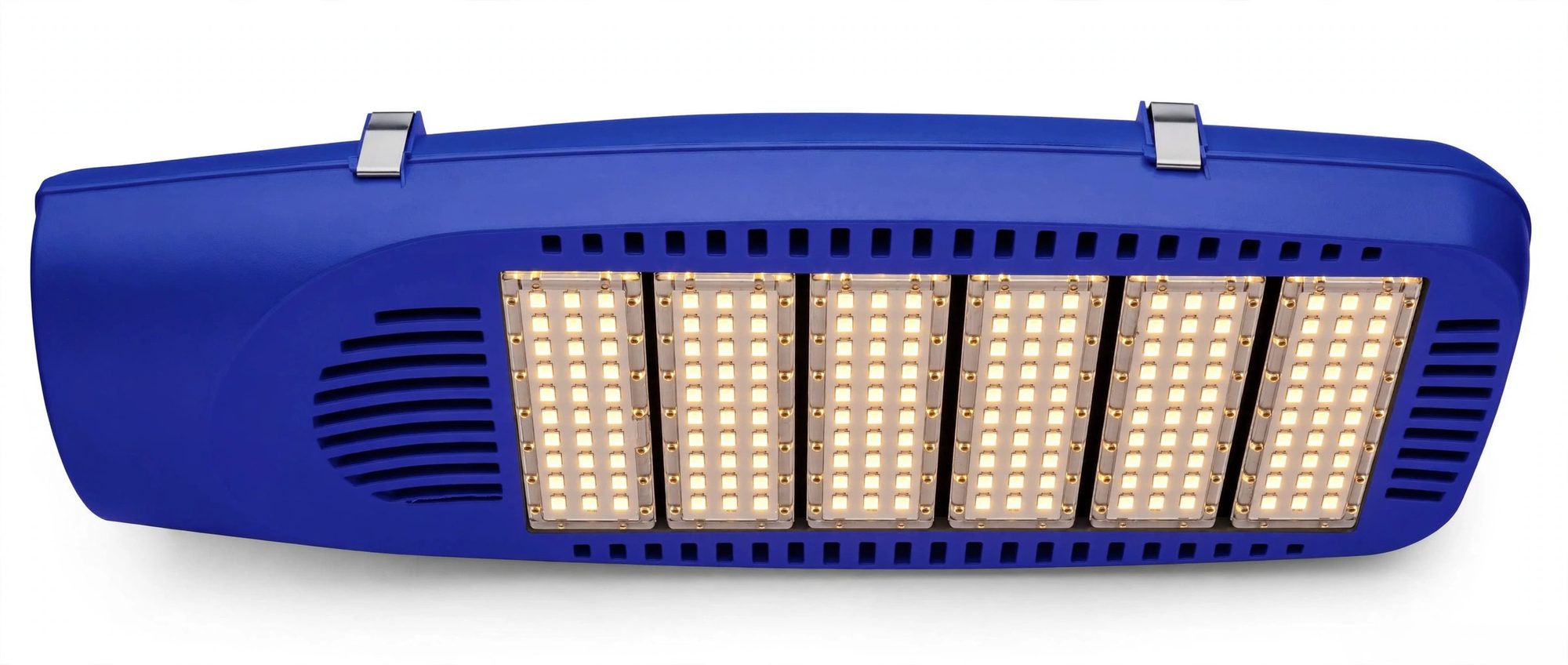

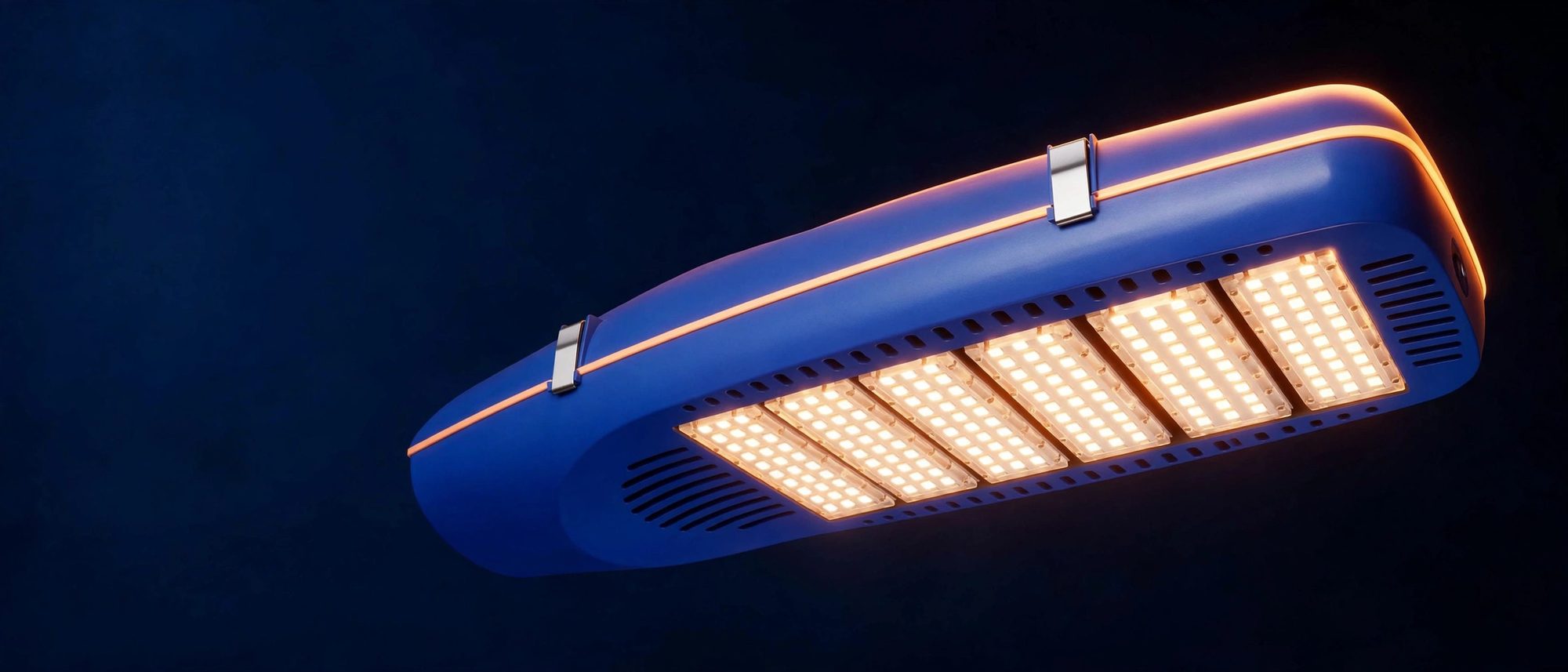

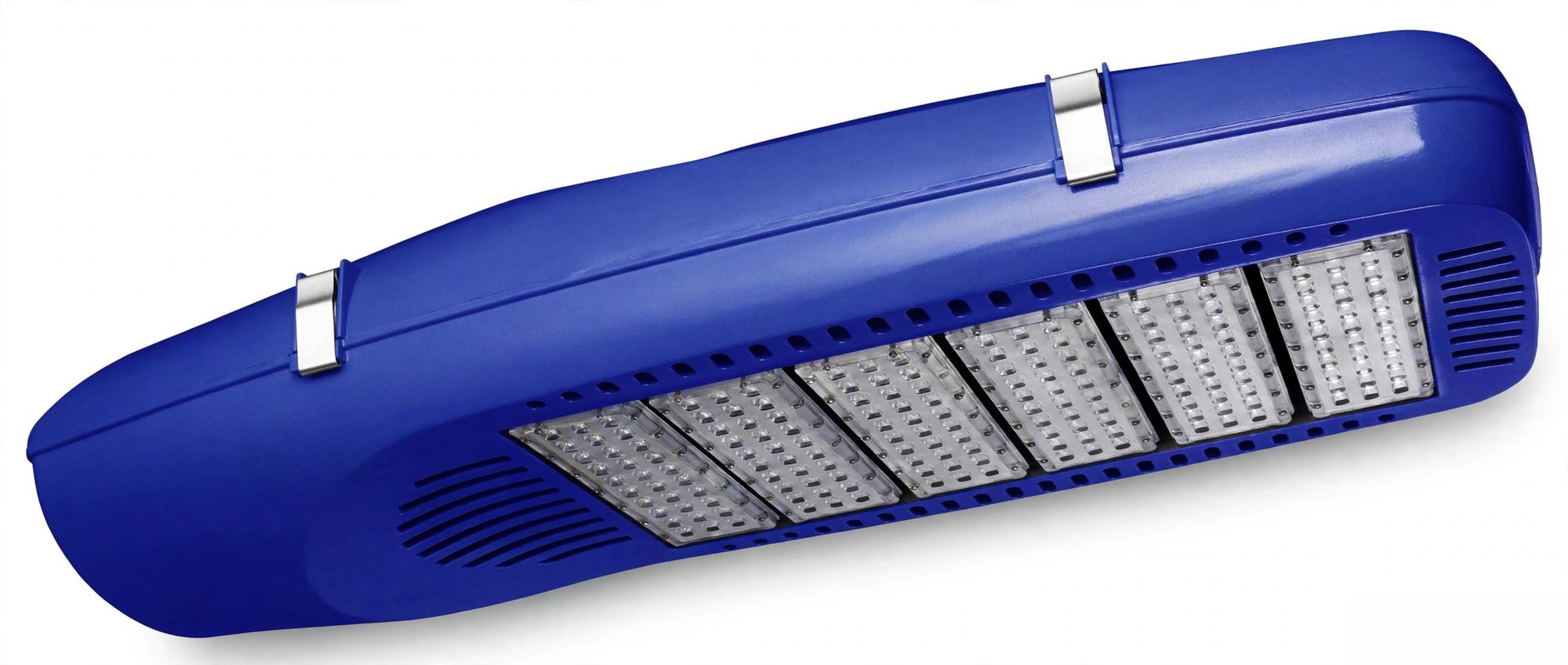

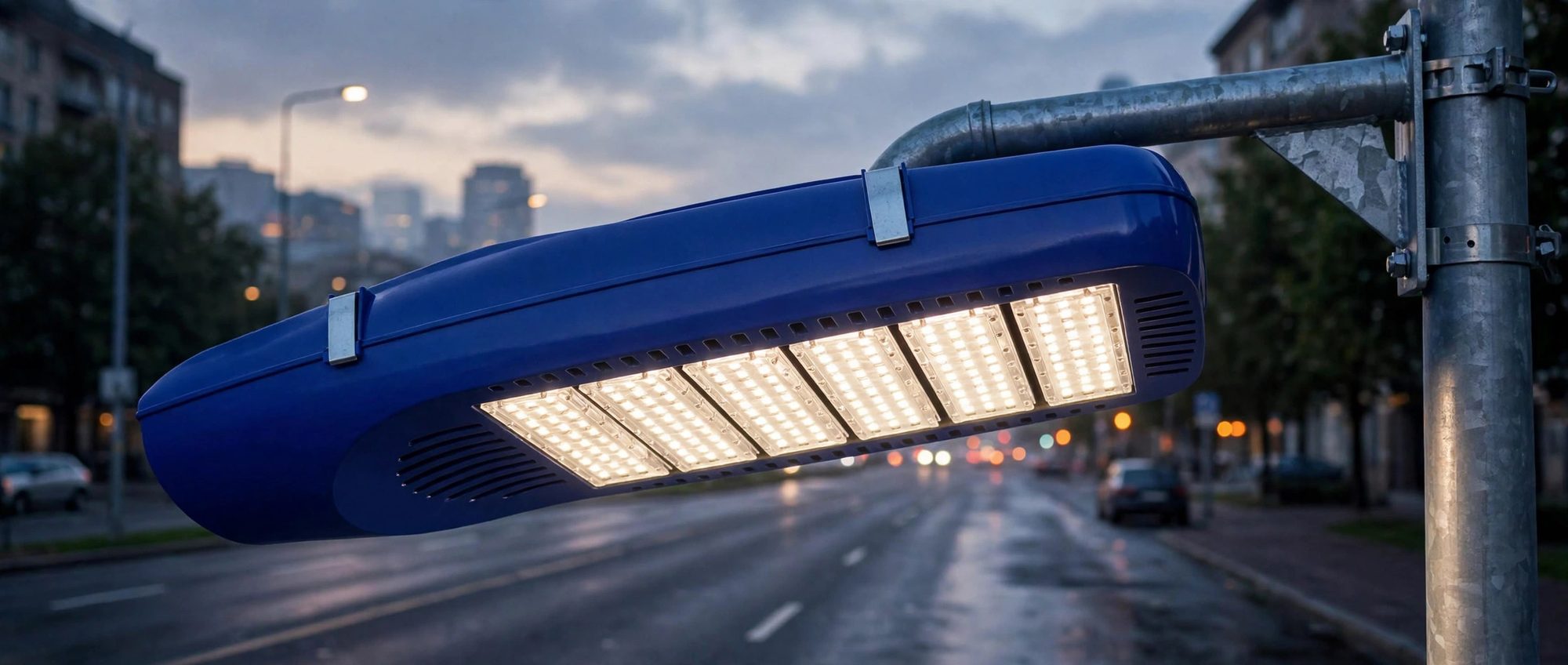

LSD-C01

Power: 60–240 W
L × W × H: 900 × 380 × 232 mm

Request price

Illustration

LED street light

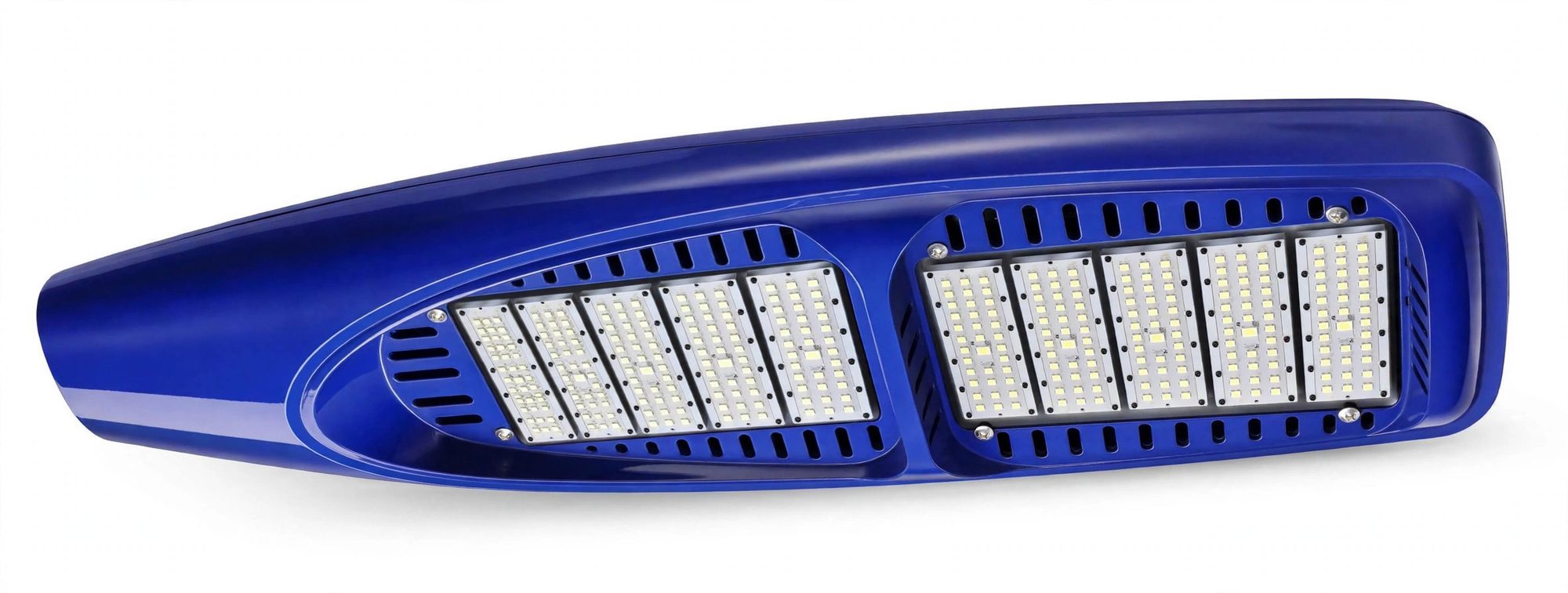

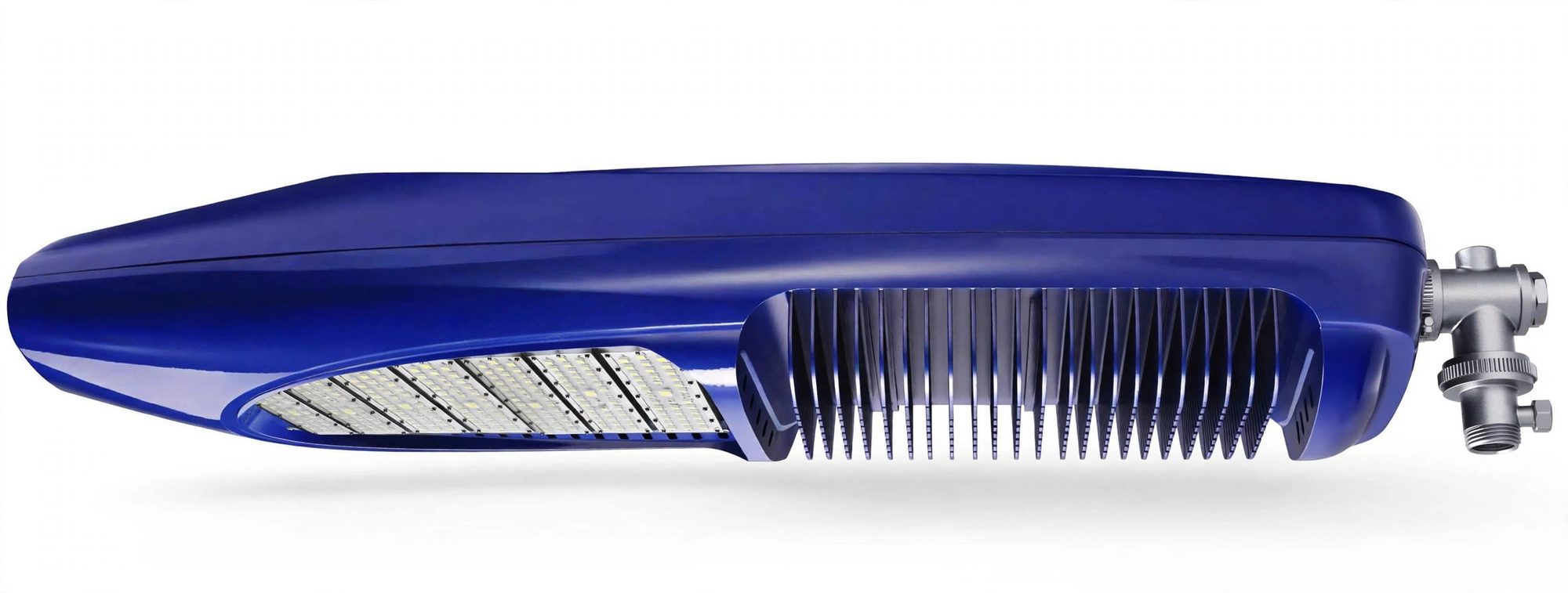

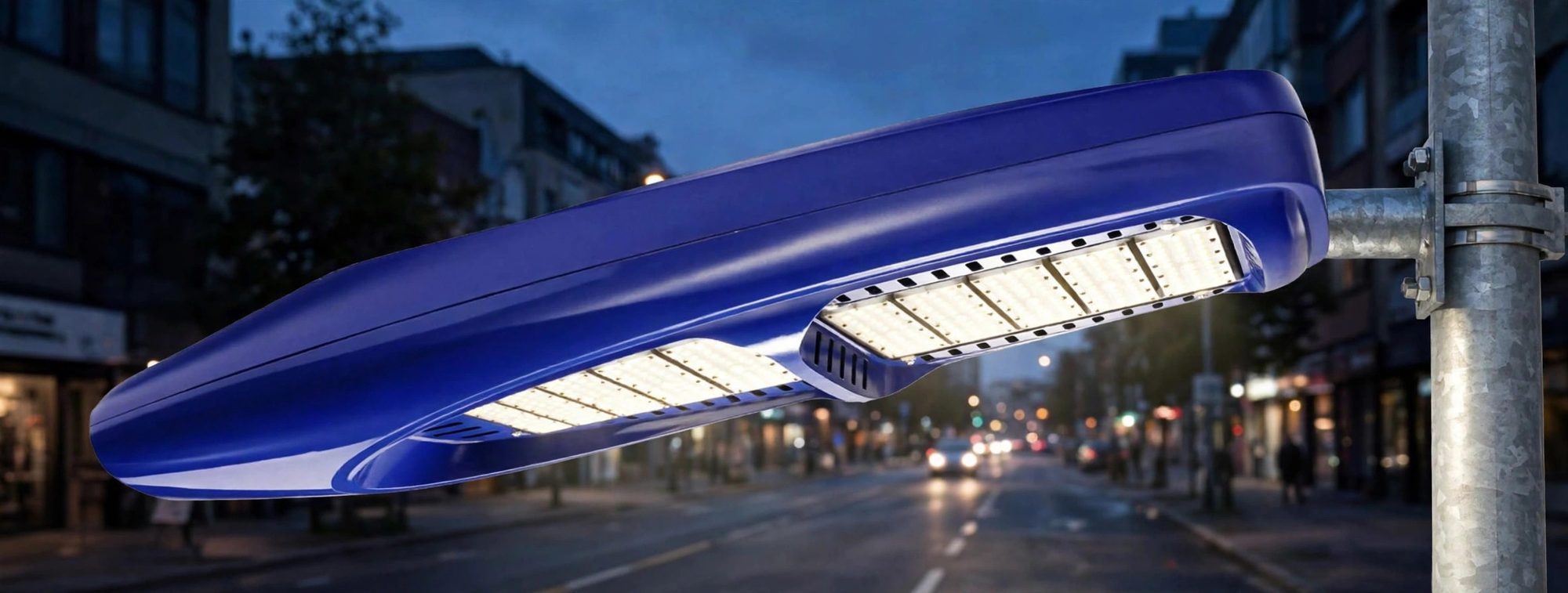

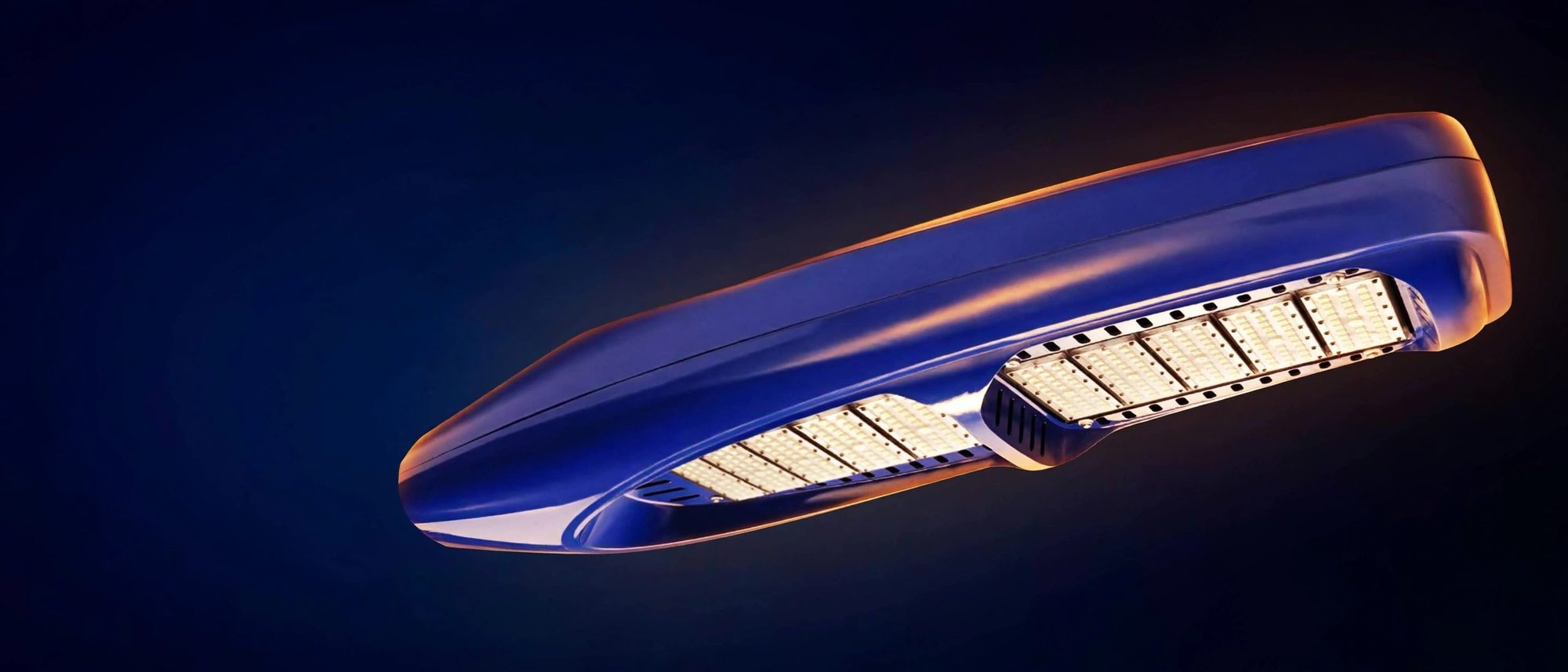

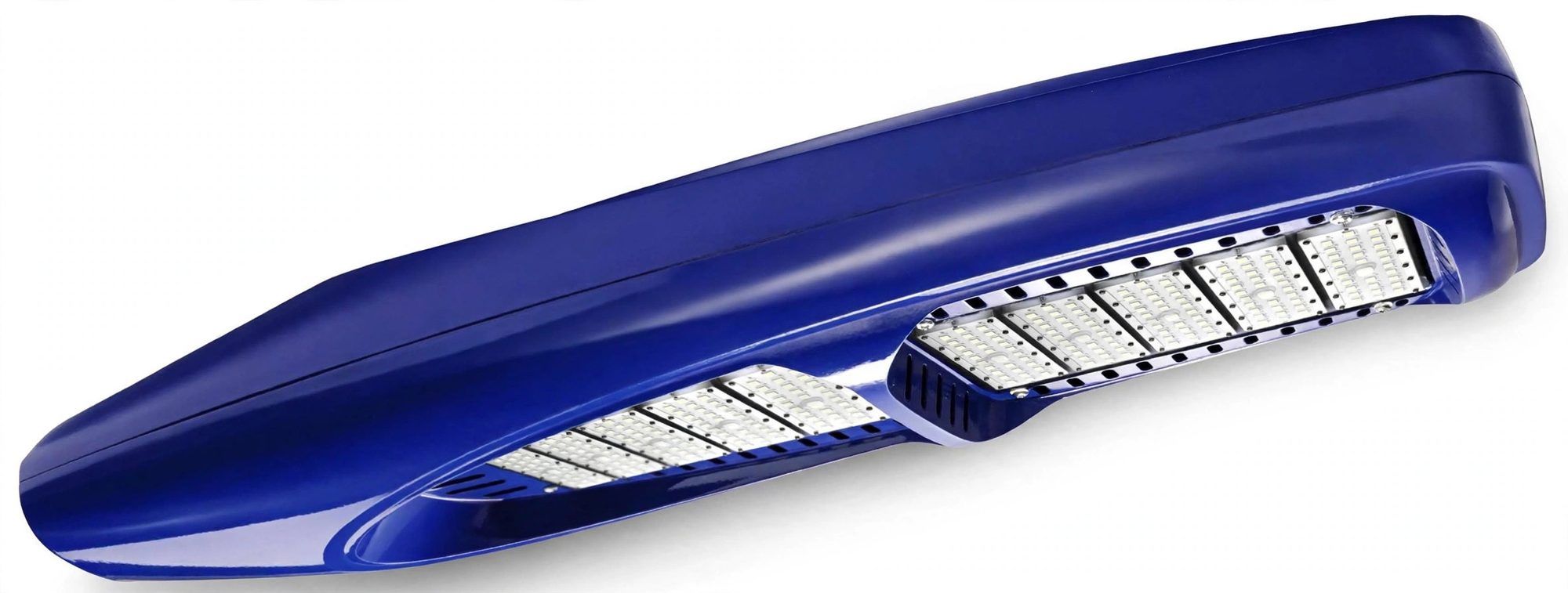

LSD-C03

Power: 180–400 W
L × W × H: 1350 × 400 × 260 mm

Request price

Illustration

LED street light

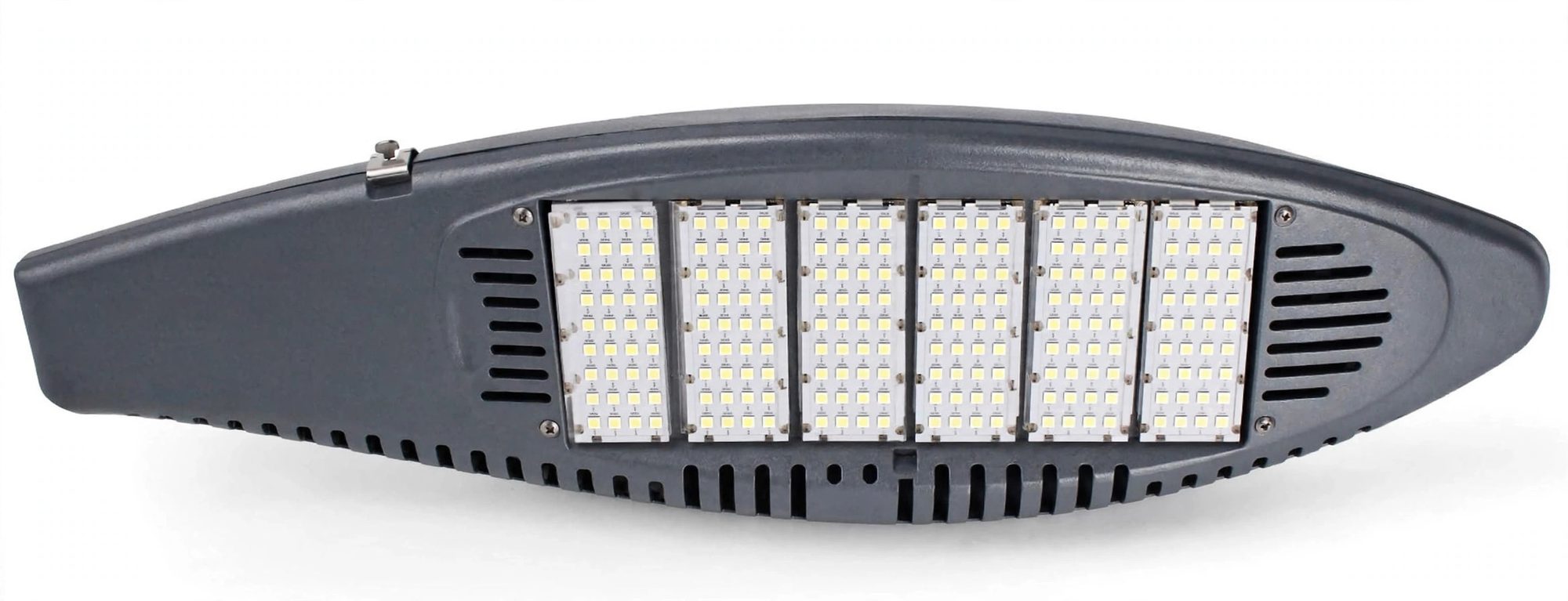

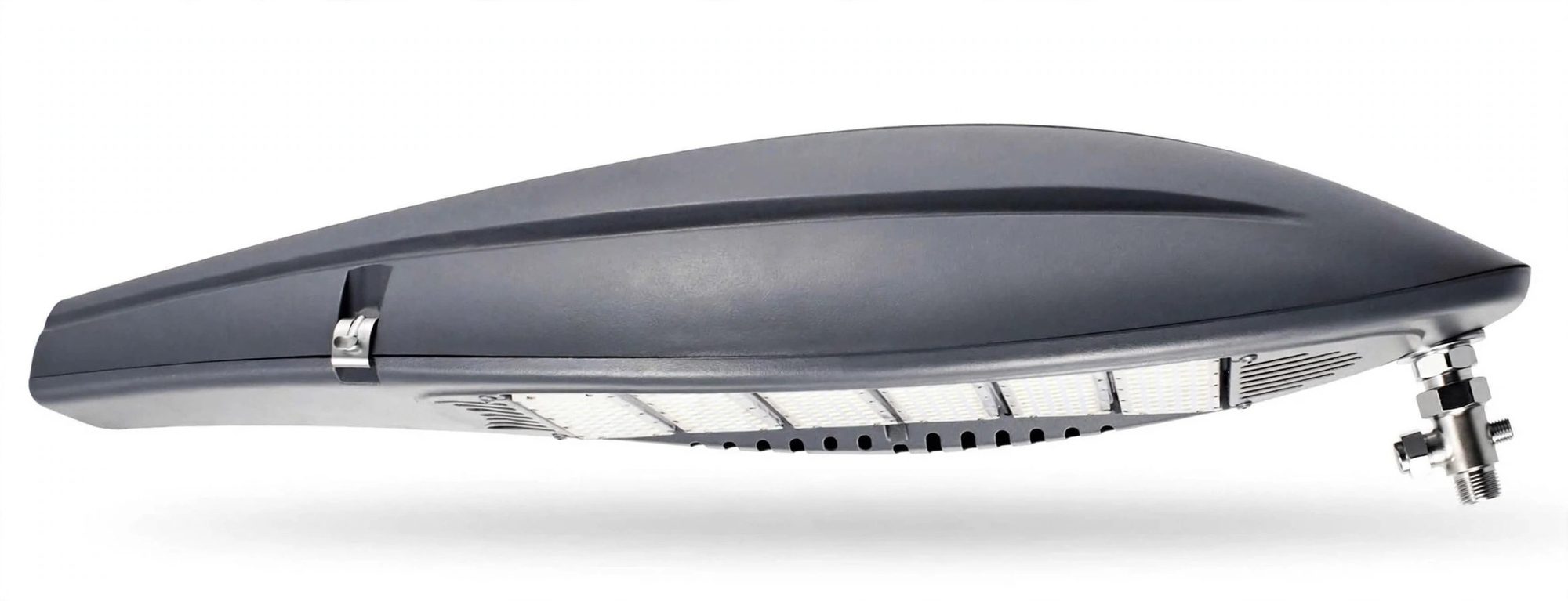

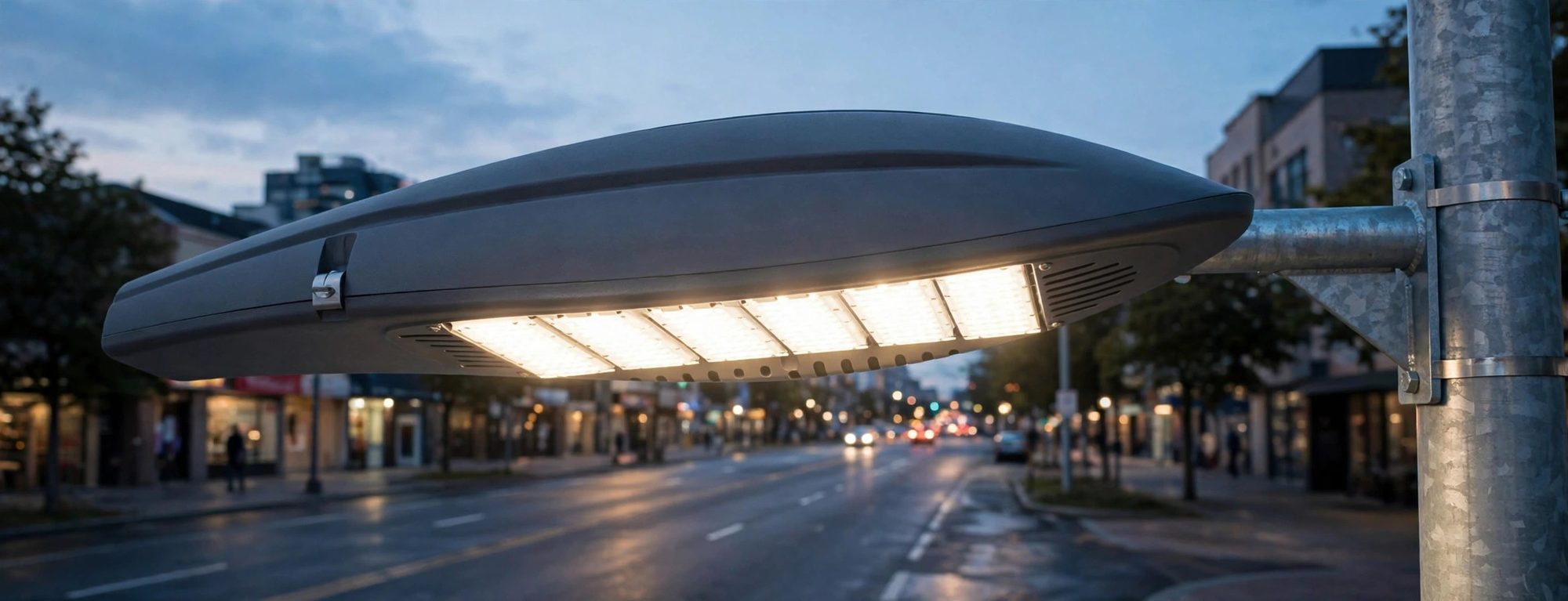

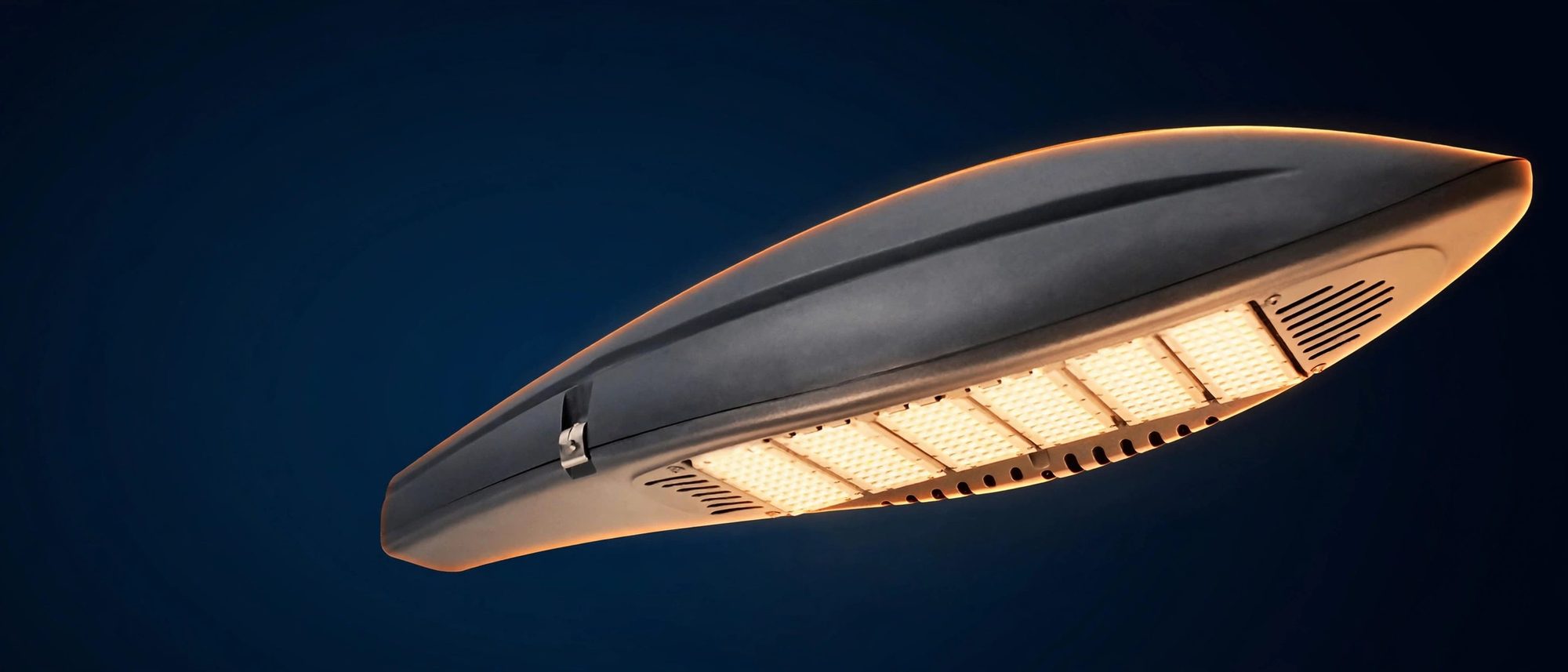

LSD-C04

Power: 150–300 W
L × W × H: 1060 × 380 × 260 mm

Request price

Illustration

LED street light

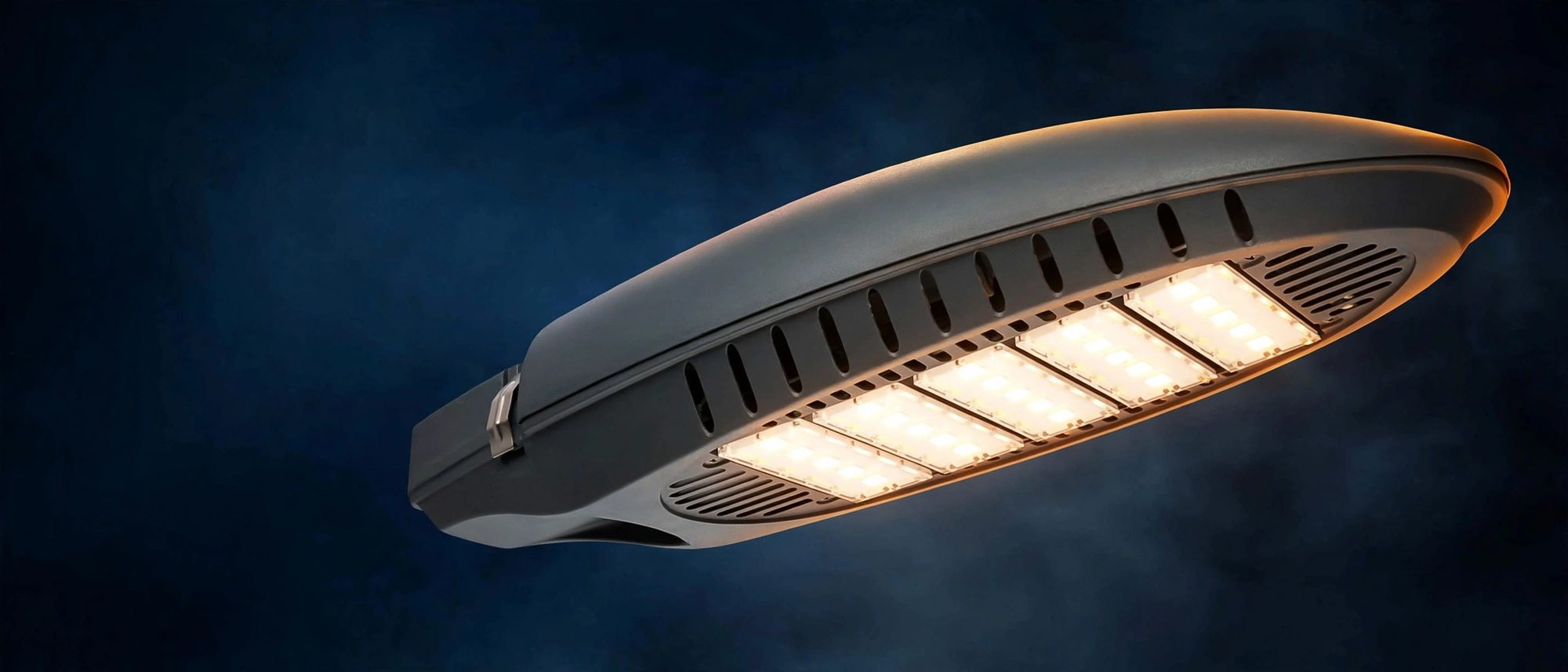

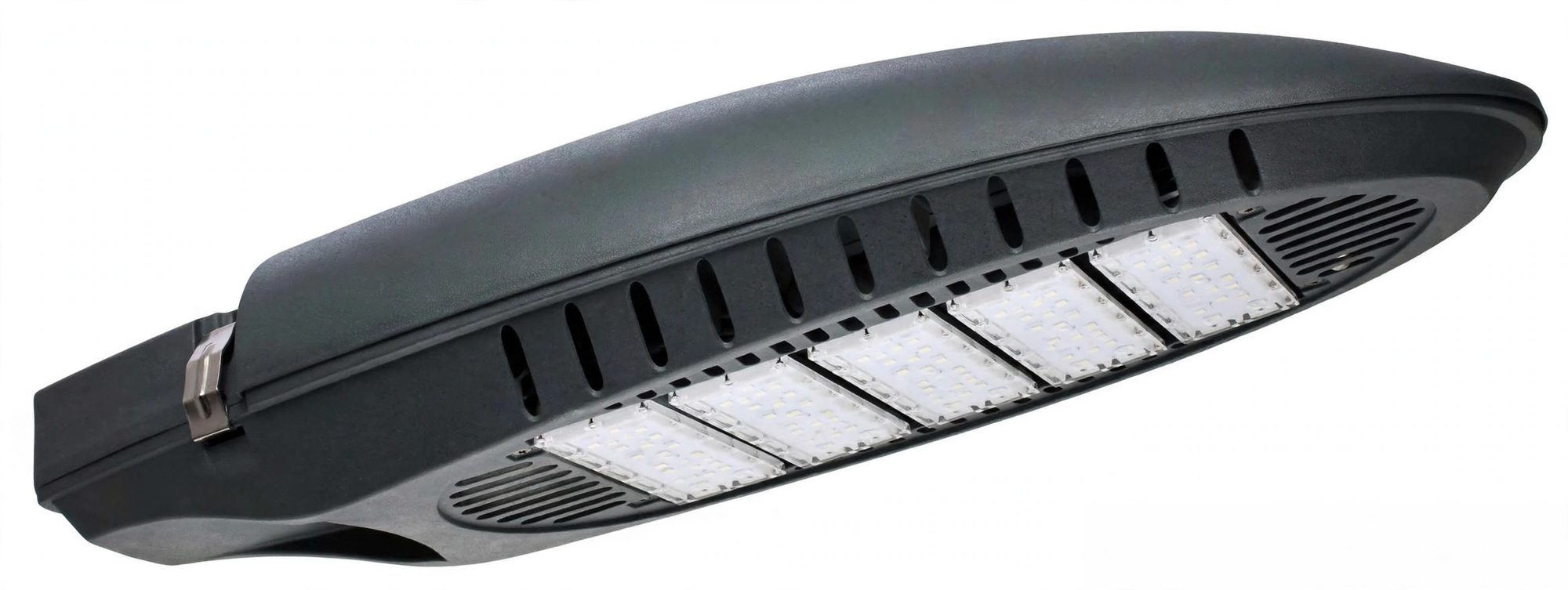

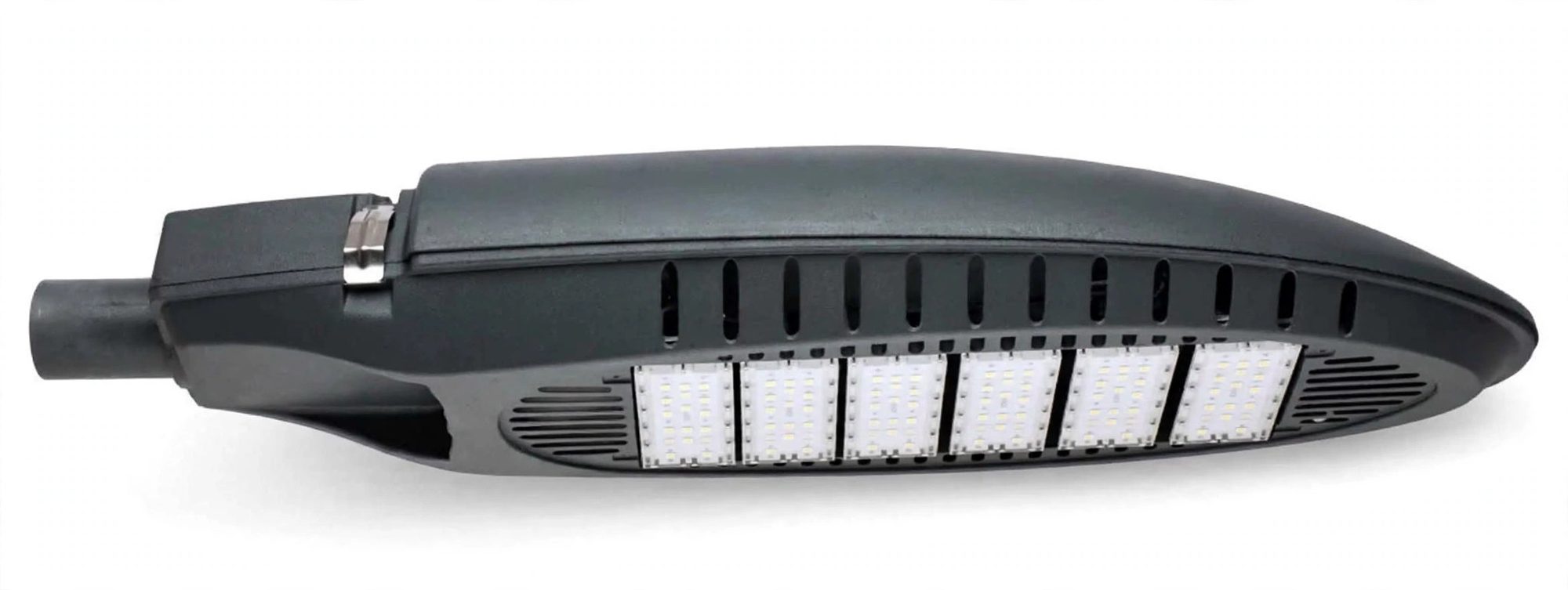

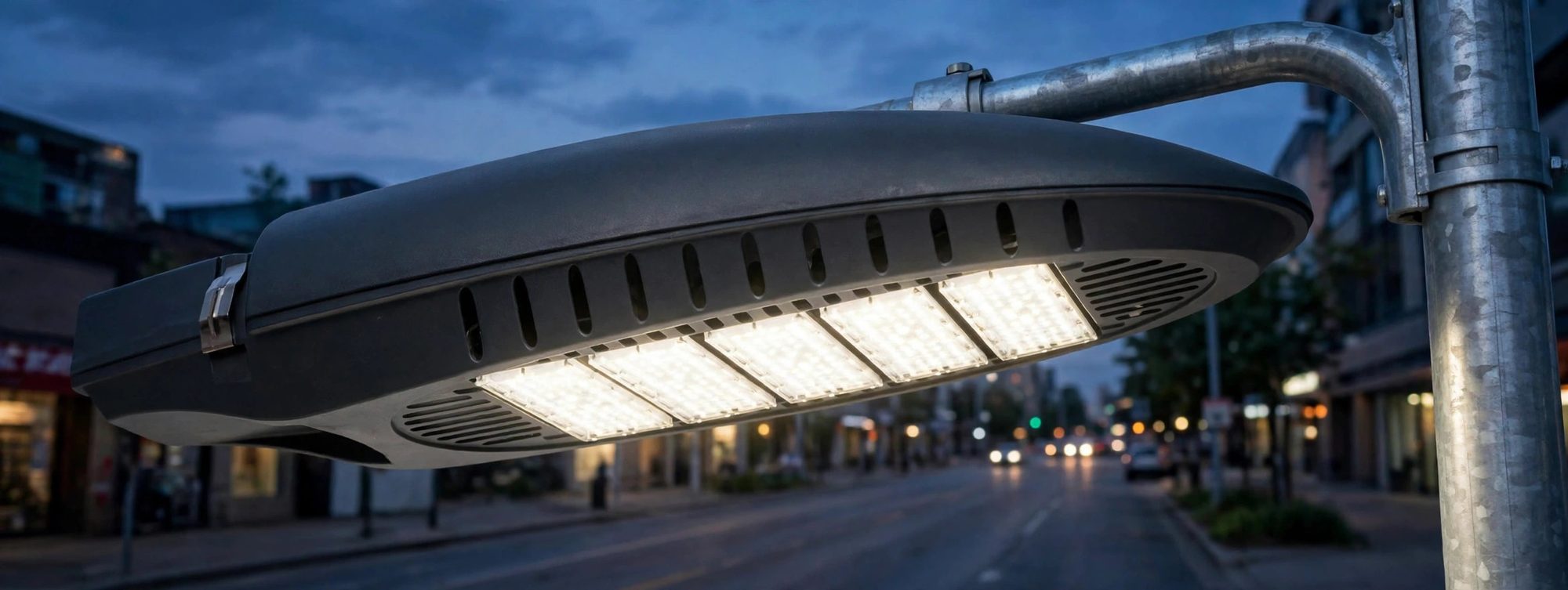

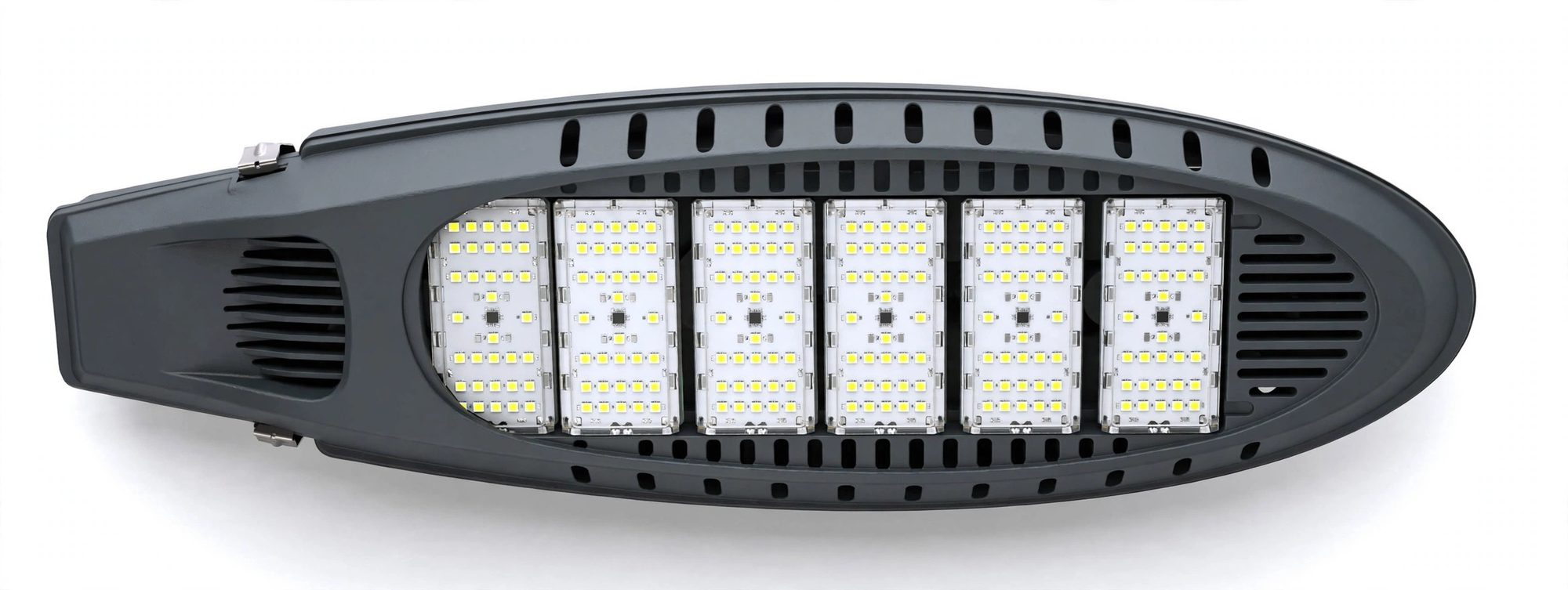

LSD-C05

Power: 60–180 W
L × W × H: 780–875 × 360–370 × 240 mm

Request price

Illustration

LED street light

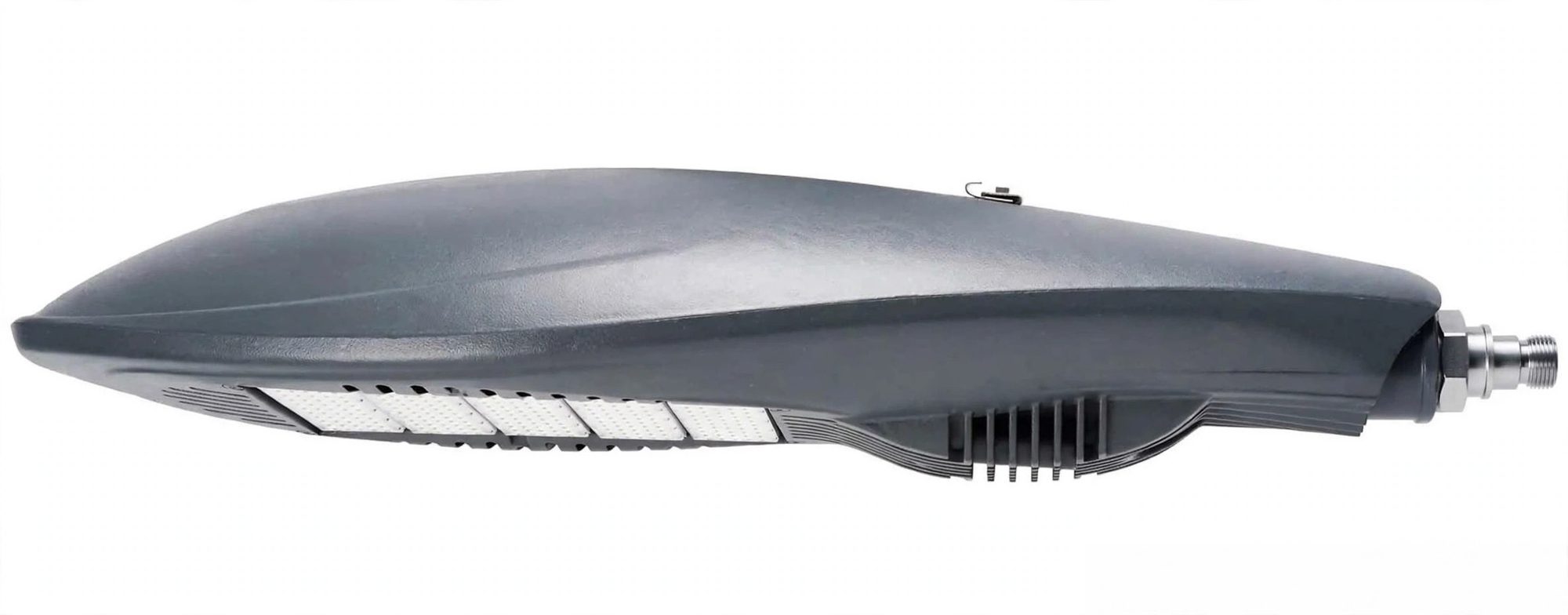

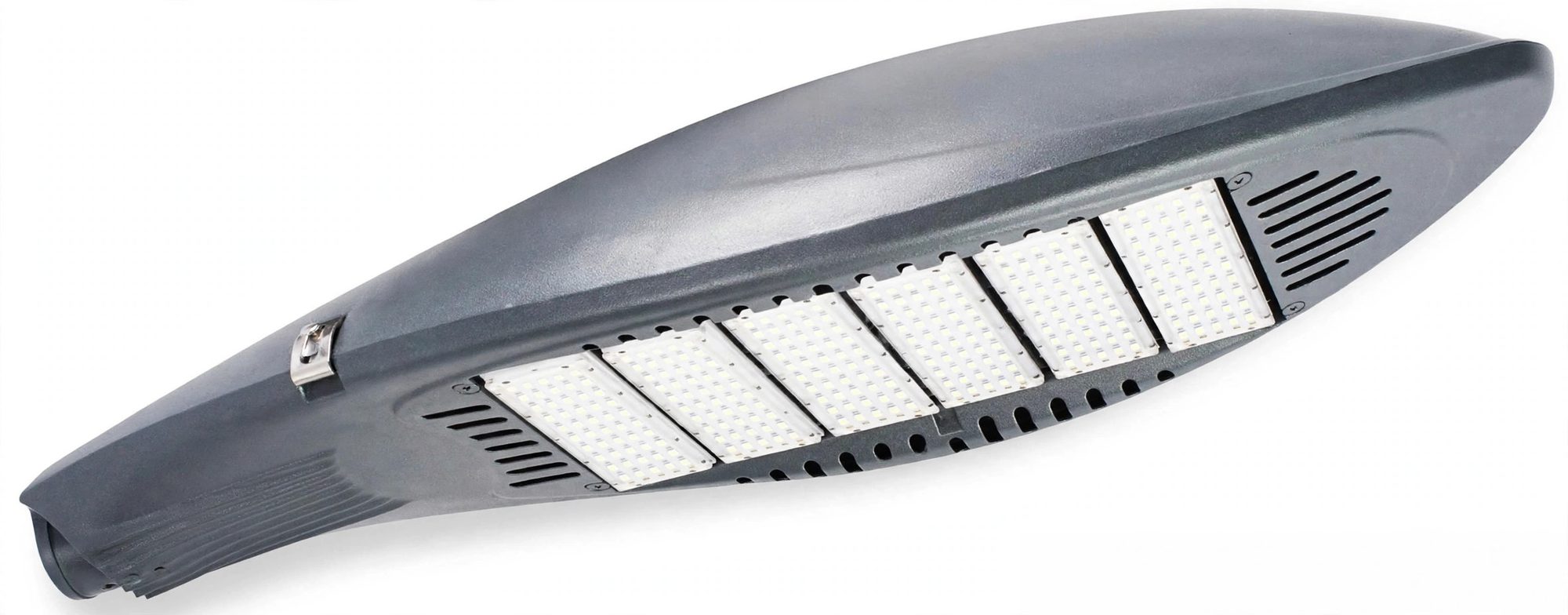

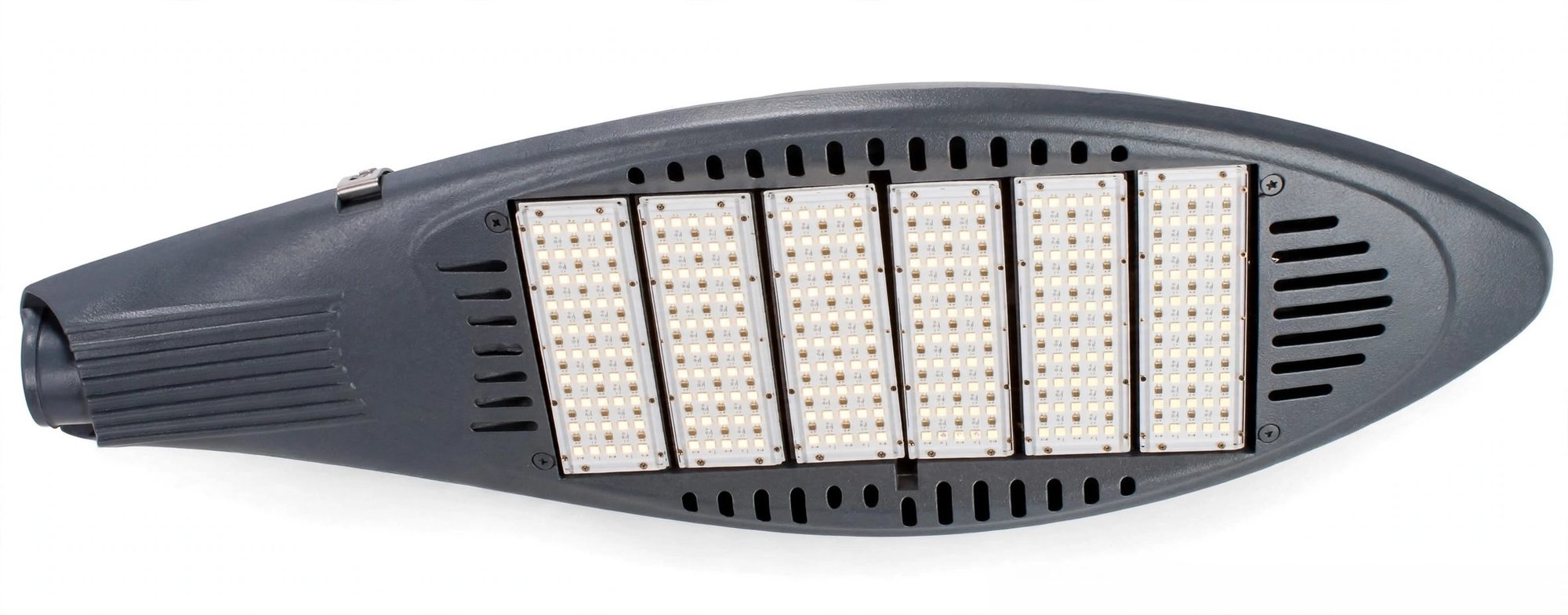

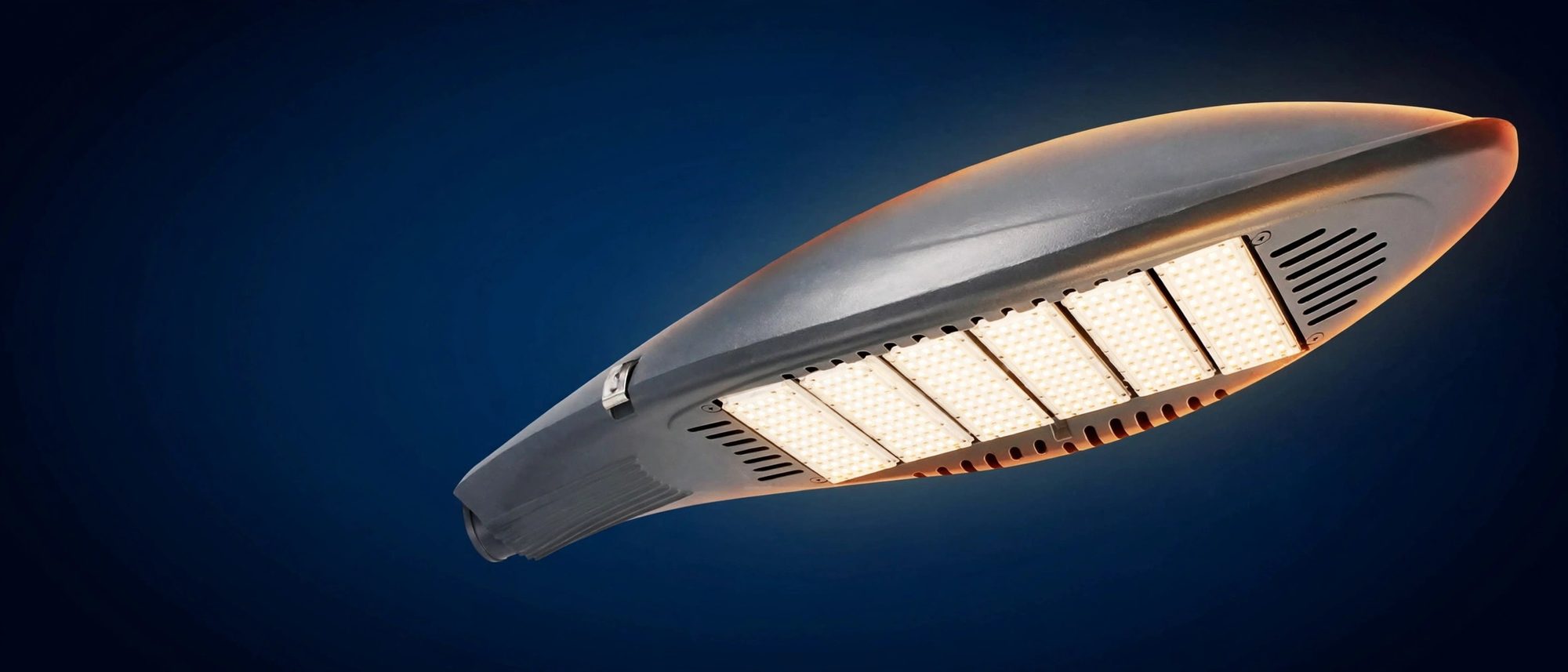

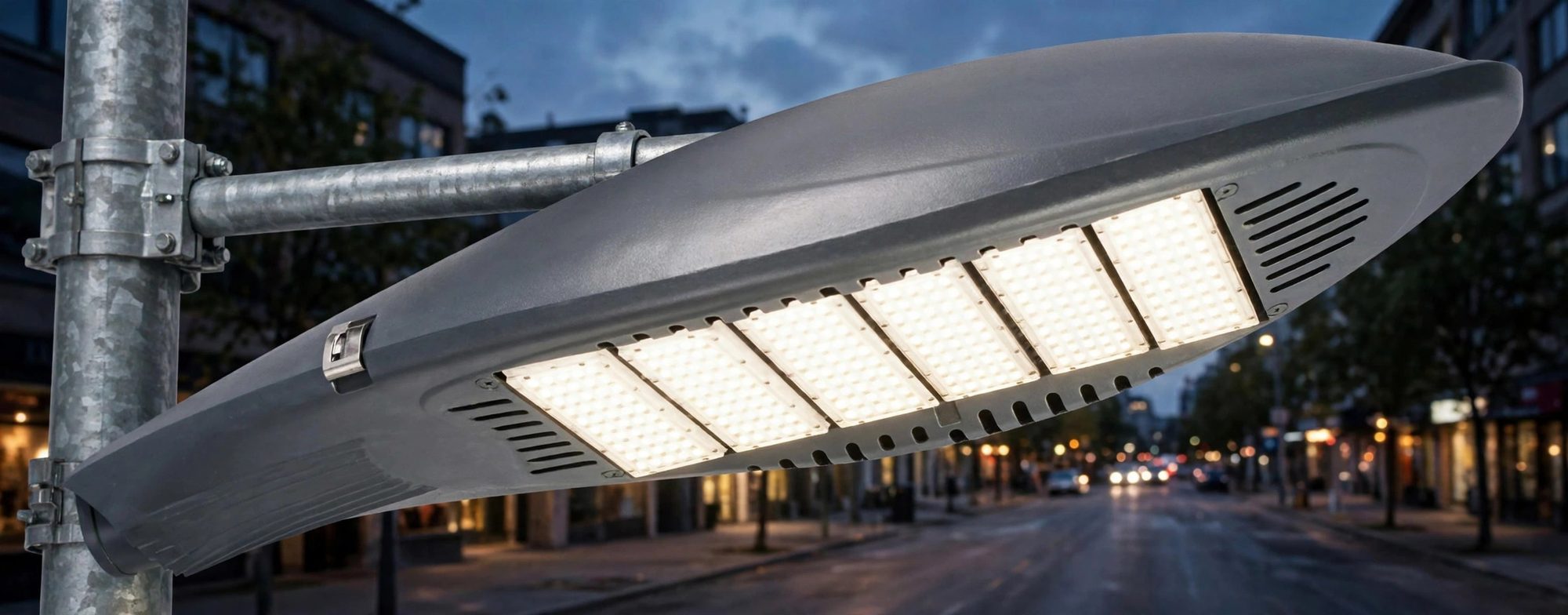

LSD-C06

Power: 90–300 W
L × W × H: 1060 × 380 × 260 mm

Request price

Illustration

LED street light

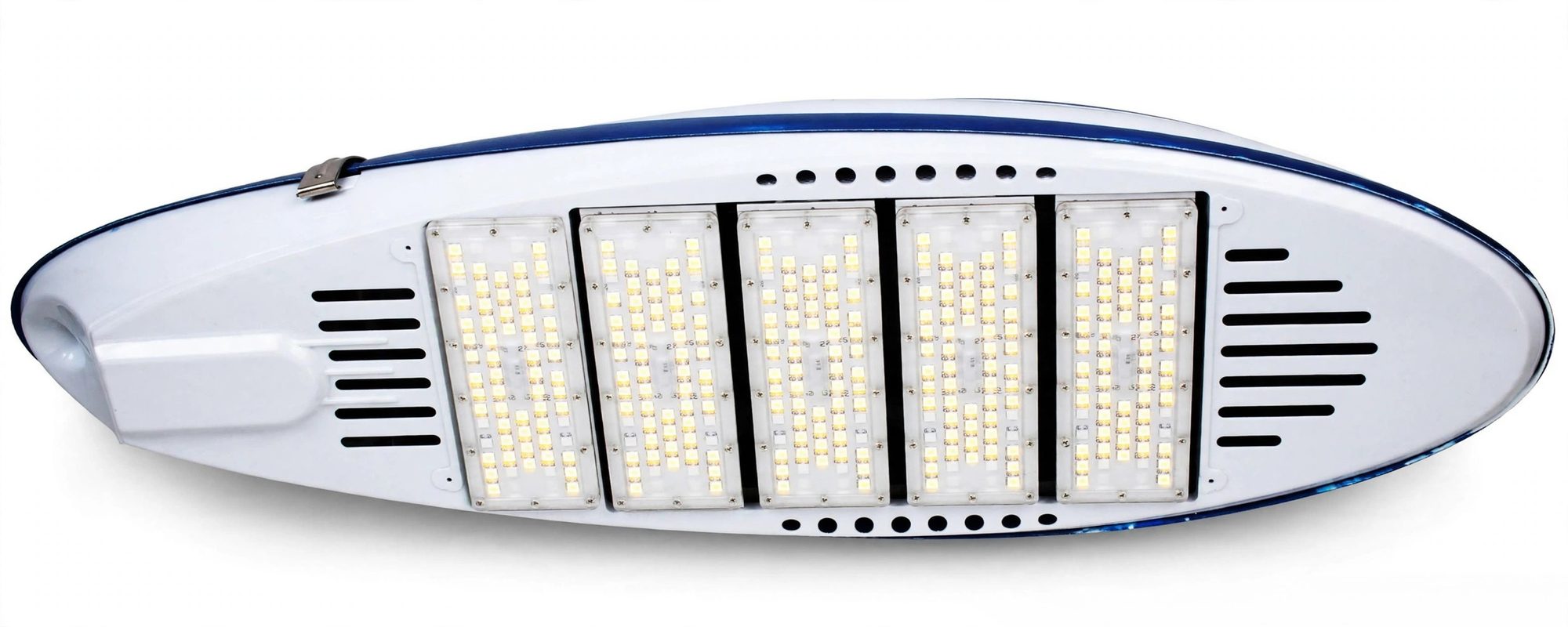

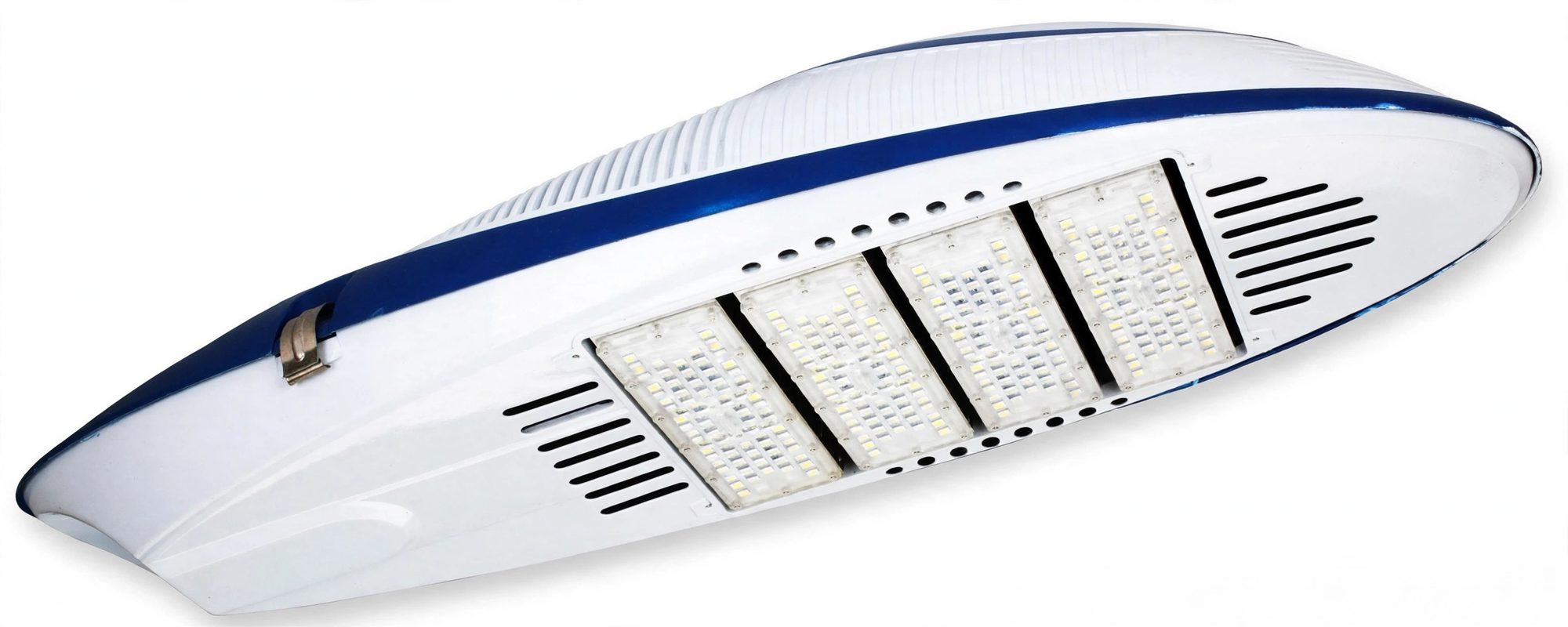

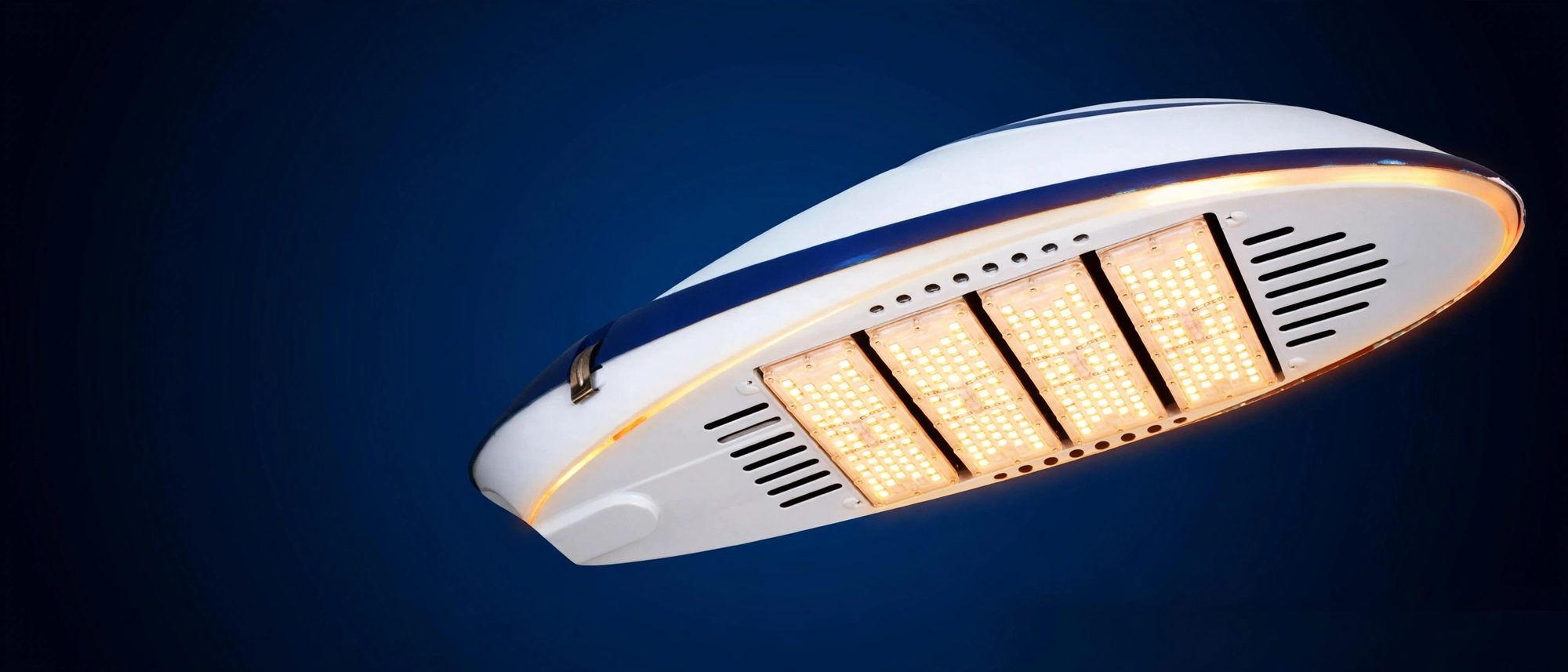

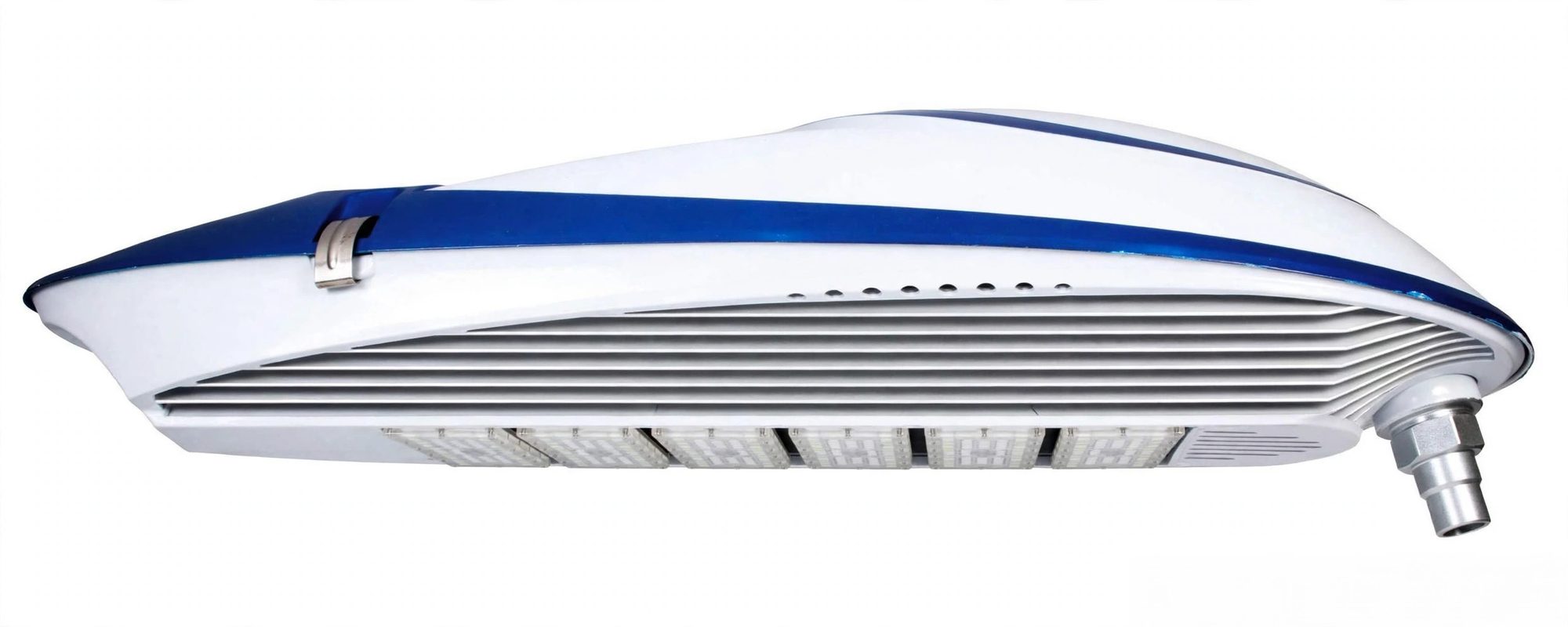

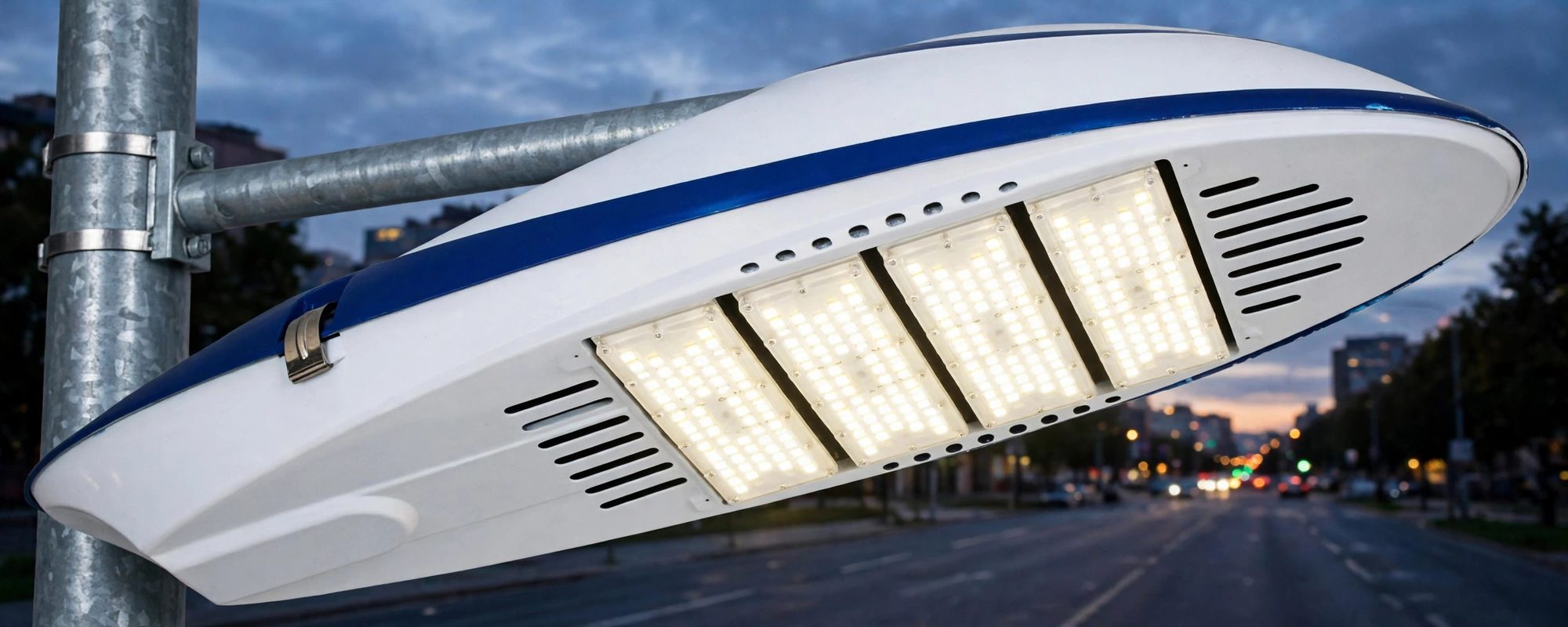

LSD-C07

Power: 60–200 W
L × W × H: 900 × 380 × 200 mm

Request price

Common electrical & optical data (C01, C03–C07)

Input voltage	AC 95–305 V, 50–60 Hz
Luminous efficacy	130–150 lm/W
Power factor	> 0.95
Driver efficiency	> 92 %
Colour temperature	3000–6000 K
CRI	Ra > 75
Ingress protection	IP68 (as specified by design)

Power range & dimensions

Model	Power	L × W × H
LSD-C01	60–240 W	900 × 380 × 232 mm
LSD-C03	180–400 W	1350 × 400 × 260 mm
LSD-C04	150–300 W	1060 × 380 × 260 mm
LSD-C05	60–180 W	780–875 × 360–370 × 240 mm (2 sizes)
LSD-C06	90–300 W	1060 × 380 × 260 mm
LSD-C07	60–200 W	900 × 380 × 200 mm

Illustration

MODULAR

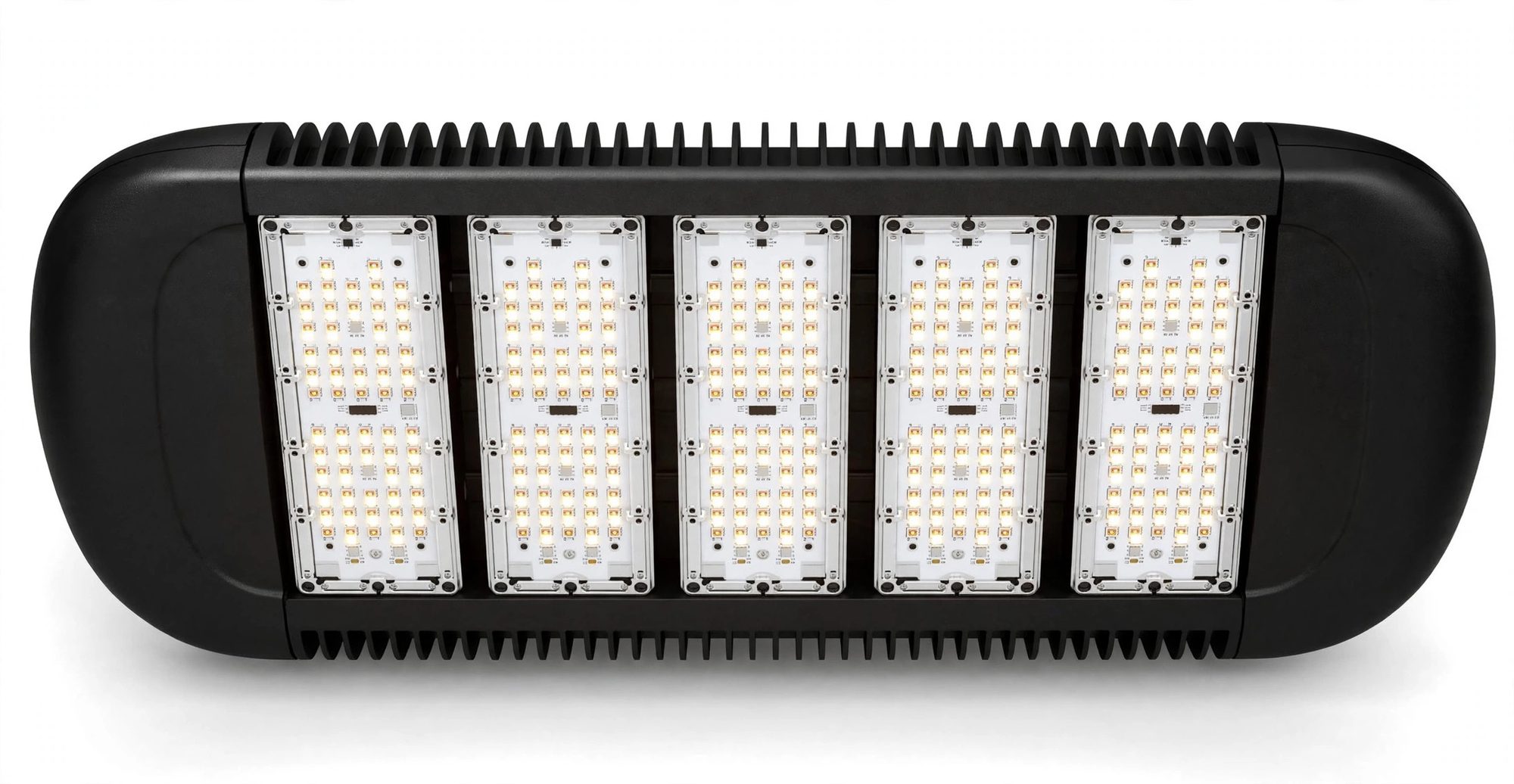

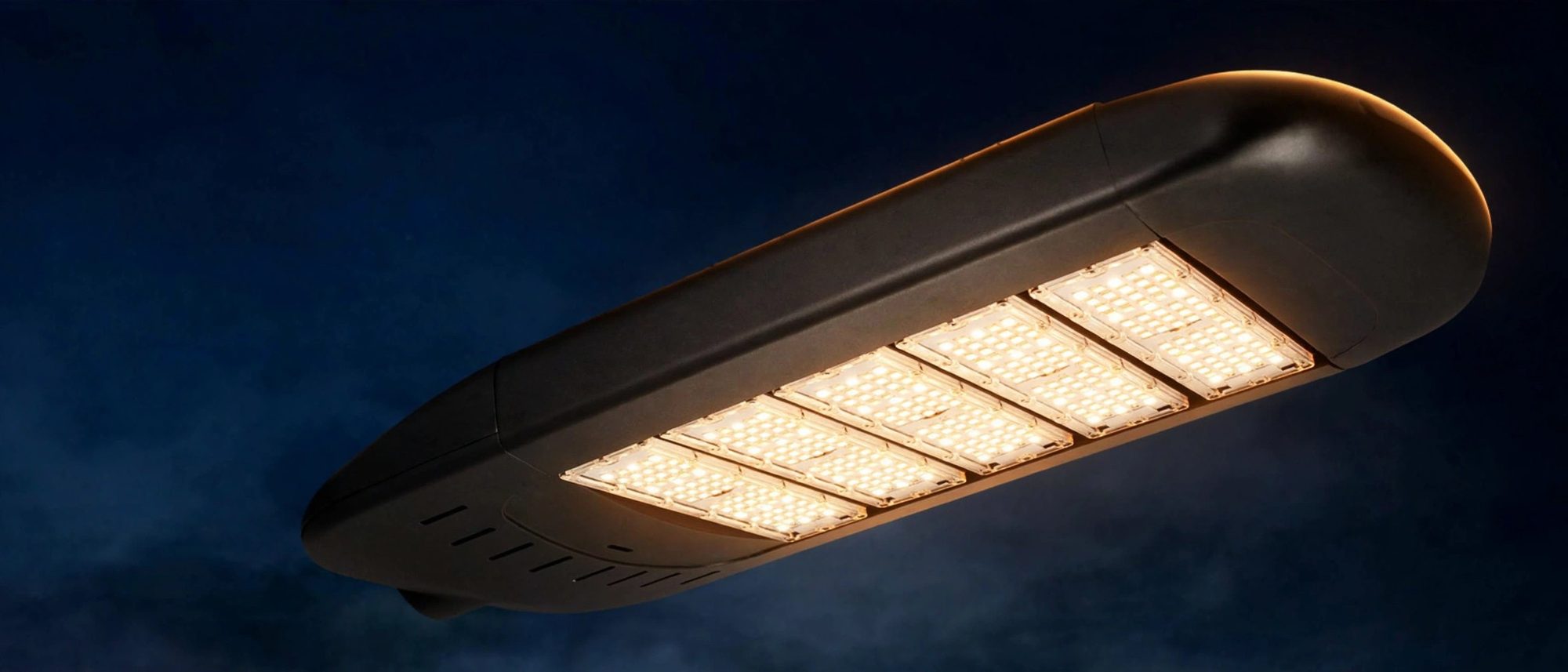

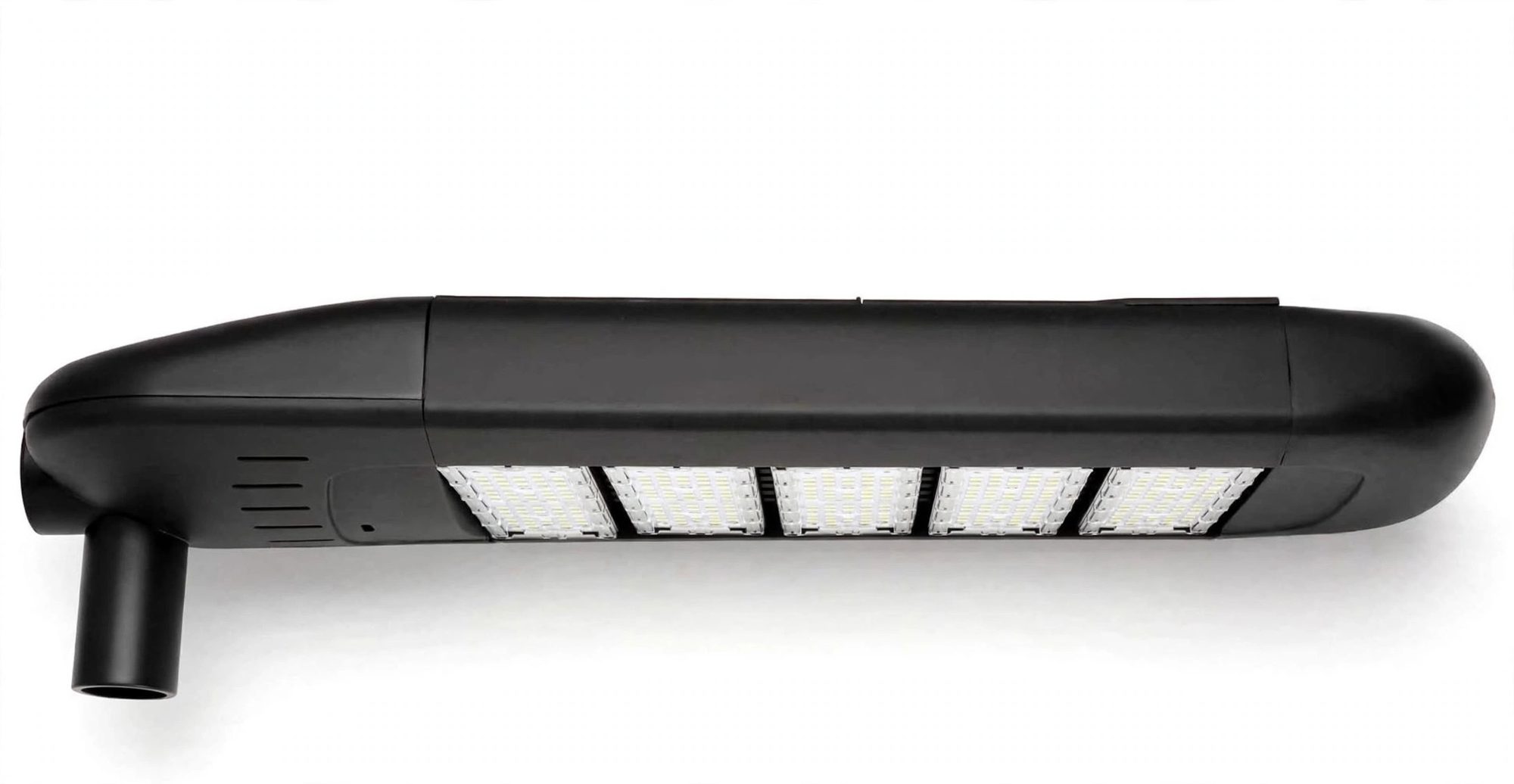

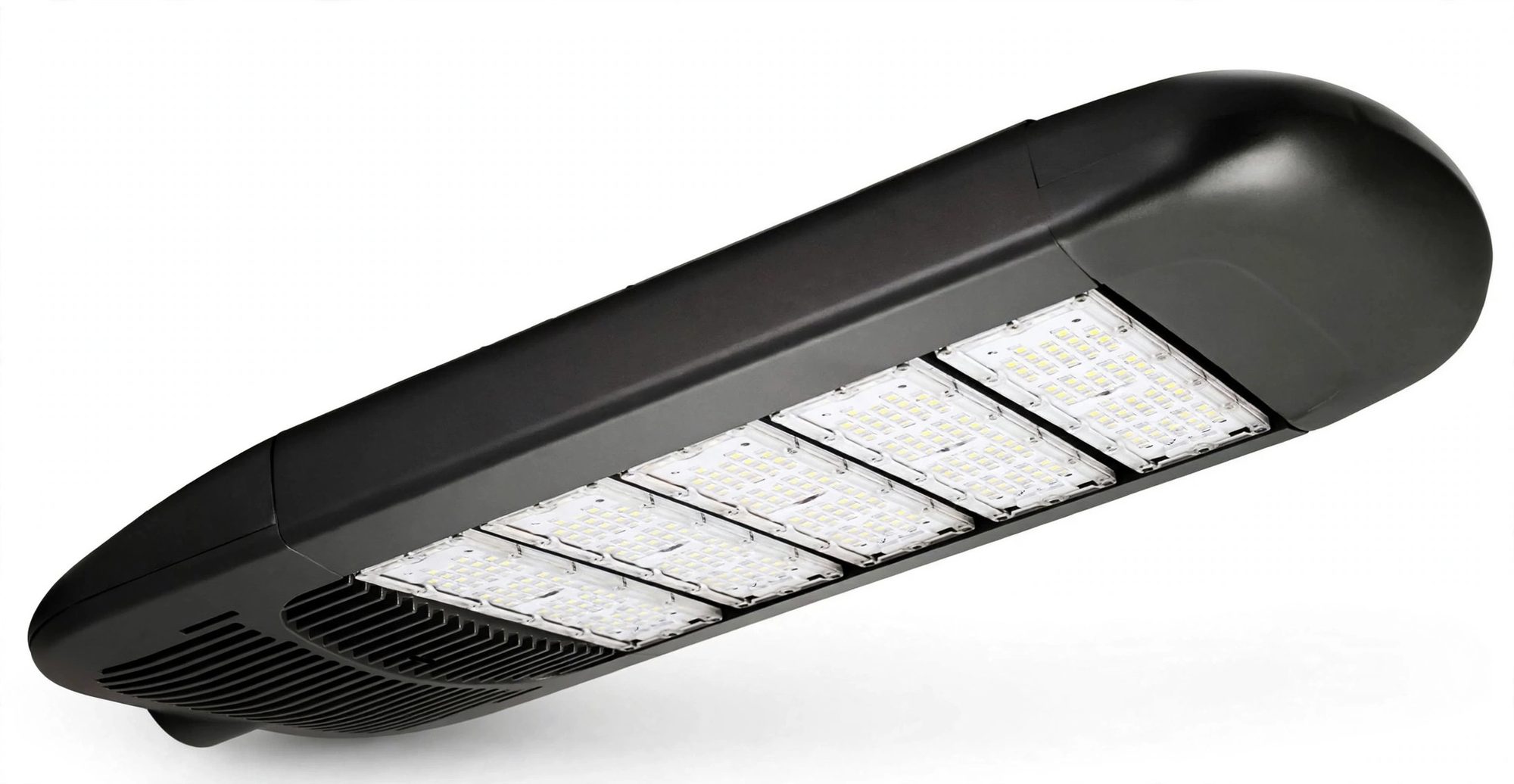

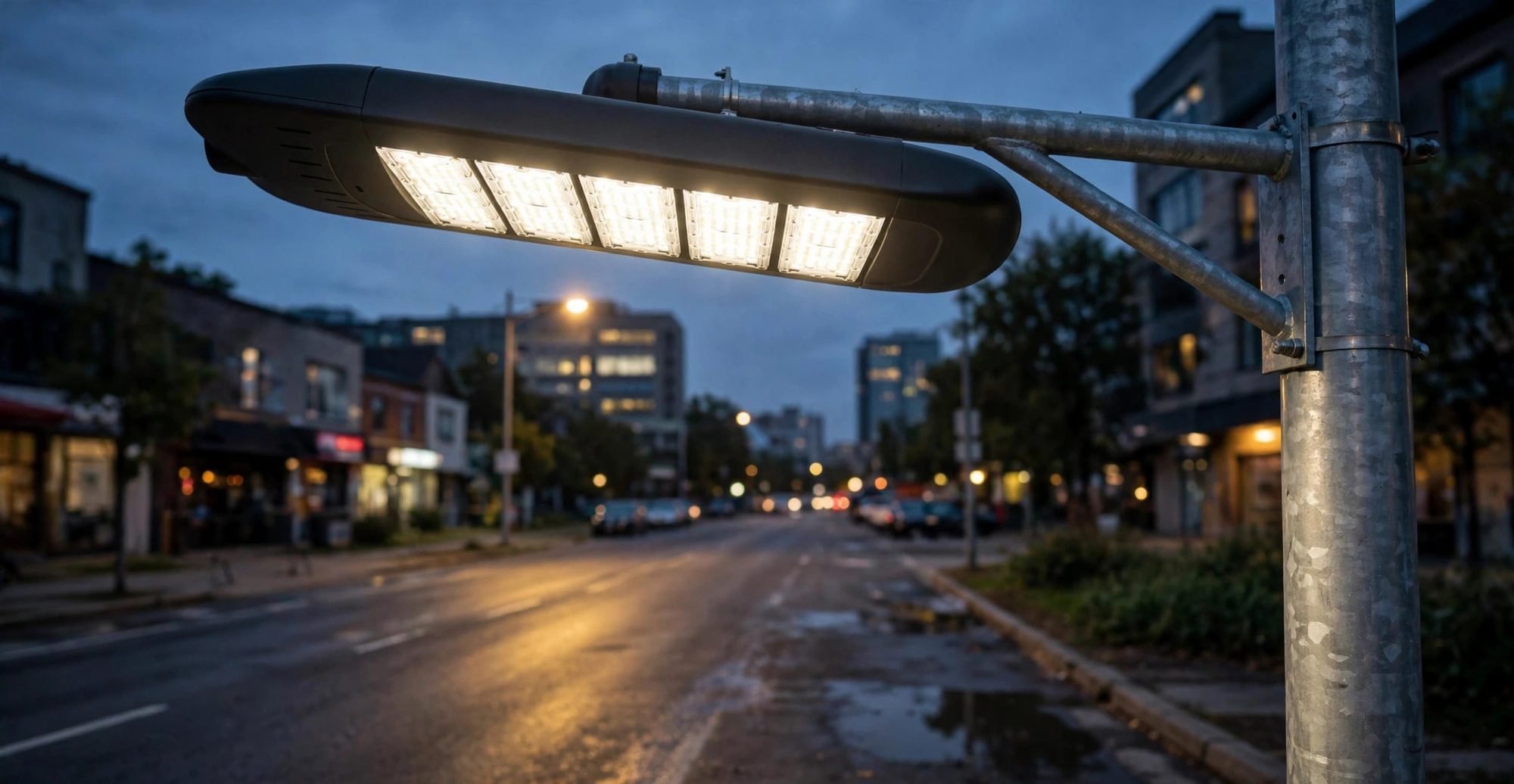

LSD-C02 modular LED street light, 30–360 W

Modular design in six housing sizes. The same platform covers residential streets up to main roads.

LED power	30–360 W
Input voltage	AC 100–240 V, 50–60 Hz
Luminous flux	3,300–39,600 lm (110 lm/W)
Power factor	> 0.97
Colour temperature	2700–6500 K
CRI	70 / 75 / 80
Operating temperature	−45 °C to +50 °C, 10–90 % RH
Rated life	> 50,000 h
Ingress protection	IP68 (as specified by design)
Housing sizes	435–835 × 370 × 110 mm (sizes A–F)
